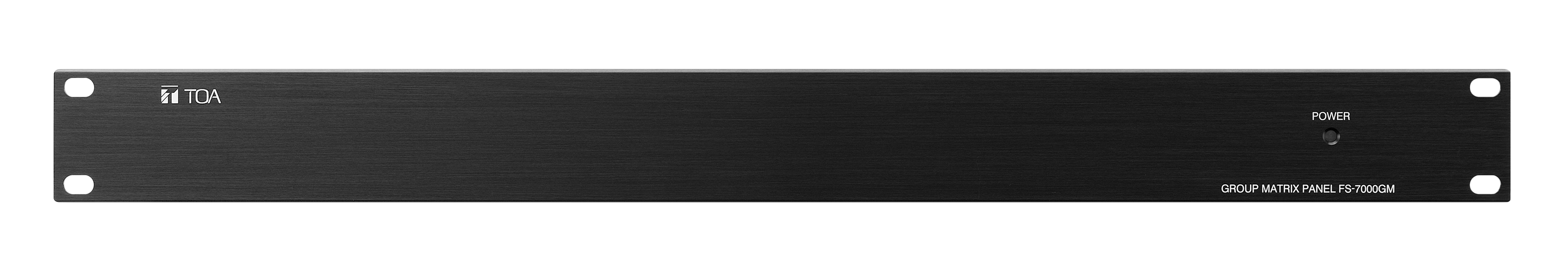

FS-7000GM Group Matrix Panel
FS-7000GM
The FS-7000GM Group Matrix Panel is used to perform group broadcasts in the FS-7000 Series Voice Evacuation System. It is designed to be connected to the FS-7000CP Control Panel or FS-7000RF Remote Microphone Interface Panel to enable group broadcasts by simultaneously selecting multiple speaker lines using the FS-7000CP's line selection switches or the FS-7000RM Remote Microphone.
| Power Source |
24 V DC, M3 screw terminal, distance between barriers: 6.4 mm |
| Current Consumption |
110 mA |
| Group Input |
Max. 20 groups |
| No. of Speaker Control Lines |
Max. 50 lines |
| Display Section |
Power indicator |
| Operating Temperature |
0℃ to +40℃ |
| Operating Humidity |
Under 90% RH (no condensation) |
| Finish |
Panel: Aluminum, black, alumite |
| Dimensions |
482 (W) × 44 (H) × 334.7 (D) mm |
| Weight |
3 kg |
| Accessory |
Circuit board …1, EH connector (10 pins) …7, Diode …200,
Circuit board mounting screw …8, EH-SMP connector …5,
Connection cable (10 pins, 2.5 m) …7 |
|
