TOA FS-7000JP JUNCTION PANEL

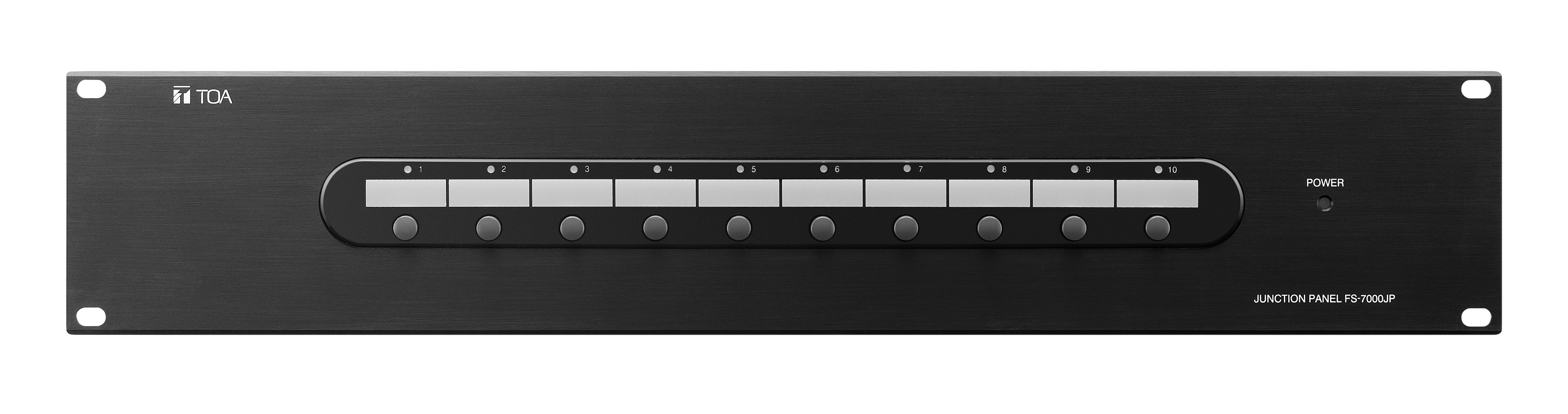

FS-7000JP Junction Panel
FS-7000JP
The FS-7000JP Junction Panel is used to connect speaker lines in the FS-7000 Series Voice Evacuation System. It is designed to be used in conjunction with the FS-7000CP Control Panel and the FS-7010CP Expansion Control Panel.
| Power Source |
24 V DC, M3 screw terminal, distance between barriers: 6.4 mm |
| Current Consumption |
450 mA |
| Power Amplifier Input |
Priority input: 100 V line: Max. 1200 W, M4 screw terminal,
distance between barriers: 9 mm
BGM input: 100 V line: Max. 1200 W, M4 screw terminal,
distance between barriers: 9 mm |
| Speaker Output |
10 lines each for H and C, M3 screw terminal, distance between barriers: 6.4 mm
(100 V line, Max. 280 W for FS-7006PA, Max. 500 W per line for FS-7012PA) |
| Line Short-Circuit Protection |
φ5 mm tubed fuse 0.5 A × 10 fuses preinstalled
(Fuse capacity must be changed depending on the load capacity.) |
| External Control Output |
General urgency/Emergency mode output terminal:
Open collector output, rated voltage: 30 V DC, current capacity: 0.1 A,
removable terminal block (2 pins)
Power remote output terminal:
Relay contact output, rated voltage: 30 V DC, current capacity: 1 A,
removable terminal block (2 pins) |
| Operating Section |
BGM zone selection keys |
| Display Section |
Power indicator, Speaker line indicators (Green: BGM in progress (2-channel
broadcast mode)/Orange: BGM in progress (1-channel broadcast mode),
priority broadcast, and emergency broadcast/Red: short-circuit) |
| Operating Temperature |
0℃ to +40℃ |
| Operating Humidity |
Under 90% RH (no condensation) |
| Finish |
Panel: Aluminum, black, alumite |
| Dimensions |
482 (W) × 88.4 (H) × 340.7 (D) mm |
| Weight |
4.2 kg |
| Accessory |
Fuse (0.5 A) …2, Connection cable (10 pins, 2.5 m) …1,
Connection cable (4 pins, 2.5 m) …1, Removable terminal plug (2 pins) …2 |
|
