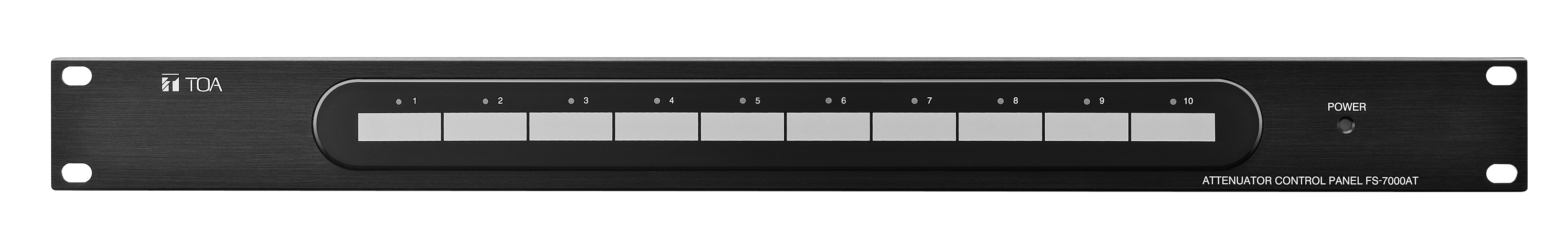

FS-7000AT Attenuator Control Panel
FS-7000AT
The FS-7000AT Attenuator Control Panel controls the 4-wire system attenuators in the FS-7000 Series Voice Evacuation System. Up to 10 attenuator lines can be controlled.
| Power Source |
24 V DC, M3 screw terminal, distance between barriers: 6.4 mm |
| Current Consumption |
200 mA |
| Attenuator DC Power Input |
Rated voltage: 24 V DC (24 - 35 V), current capacity: 5 A, M3 screw terminal,
distance between barriers: 6.4 mm |
| Attenuator Control Output |
10 lines, rated voltage: 24 V DC, current capacity: 0.75 A (per line)/5 A (total
of 10 lines), with output short-circuit protection function, M3 screw terminal,
distance between barriers: 6.4 mm |
| Display Section |
Power indicator, Attenuator line indicators |
| Operating Temperature |
0℃ to +40℃ |
| Operating Humidity |
Under 90% RH (no condensation) |
| Finish |
Panel: Aluminum, black, alumite |
| Dimensions |
482 (W) × 44 (H) × 336 (D) mm |
| Weight |
3 kg |
| Accessory |
Connection cable (12 pins, 60 cm) …1 |
|
