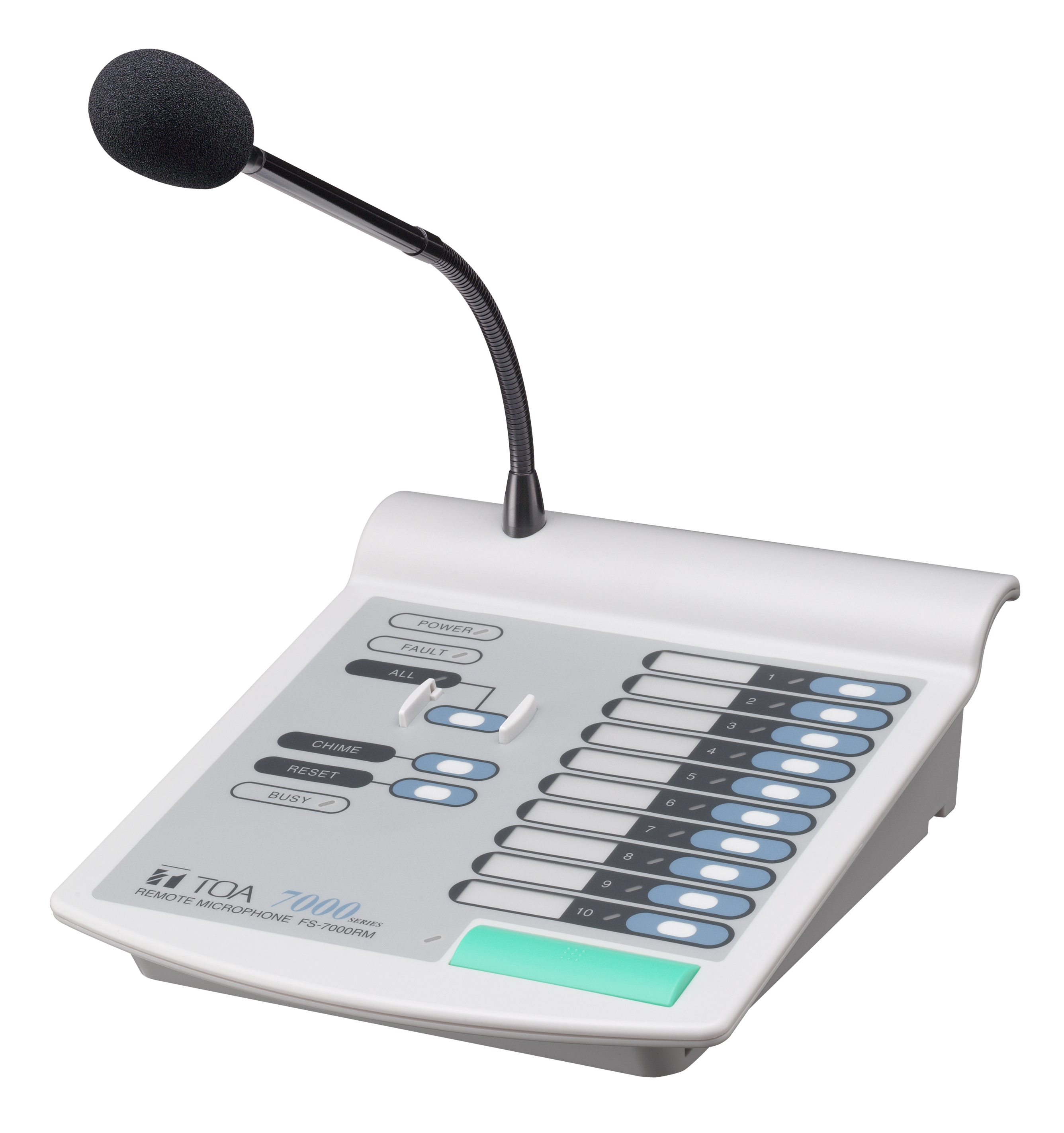

FS-7000RM Remote Microphone
FS-7000RM
The FS-7000RM Remote Microphone is used solely for making general-purpose announcements in the FS-7000 Series Voice Evacuation System. It can broadcast announcements to 10 different individual zones in addition to simultaneous all-zone calls.
- * 0 dB = 1 V
| Power Source |
24 V DC (operating range: 20 - 30 V DC) (supplied from RJ45 connector
or power input jack)
Usable power input plug: 5.5 mm outer diameter, 2.1 mm inner diameter,
and 9.5 mm long. |
| Current Consumption |
90 mA |
| Output |
0 dB*, 600 Ω, balanced, RJ45 connector |
| External Microphone Input |
-40 dB*, 2.2 kΩ, unbalanced, mini jack, phantom powering |
| Distortion |
Under 1% |
| Frequency Response |
100 - 20,000 Hz |
| S/N Ratio |
Over 60 dB |
| Output Control |
10 individual zones + all-zone call or 10 group zones + all-zone call
(when optional FS-7000GM is connected)
(individual zones expandable to up to 50 zones using optional FS-7010RM) |
| Operating Section |
All-zone selection key, Chime key, Broadcast reset key, zone selection keys,
Talk key |
| Display Section |
Power indicator, Fault indicator, Busy indicator, All-zone call indicator,
Zone indicators |
| Operating Temperature |
0℃ to +40℃ |
| Operating Humidity |
Under 90% RH (no condensation) |
| Finish |
ABS resin, blueish gray |
| Dimensions |
190 (W) × 76.5 (H) × 215 (D) mm (gooseneck microphone excluded) |
| Weight |
900 g |
| Accessory |
Connection cable (3 m) …1 |
|
