| Enclosure |

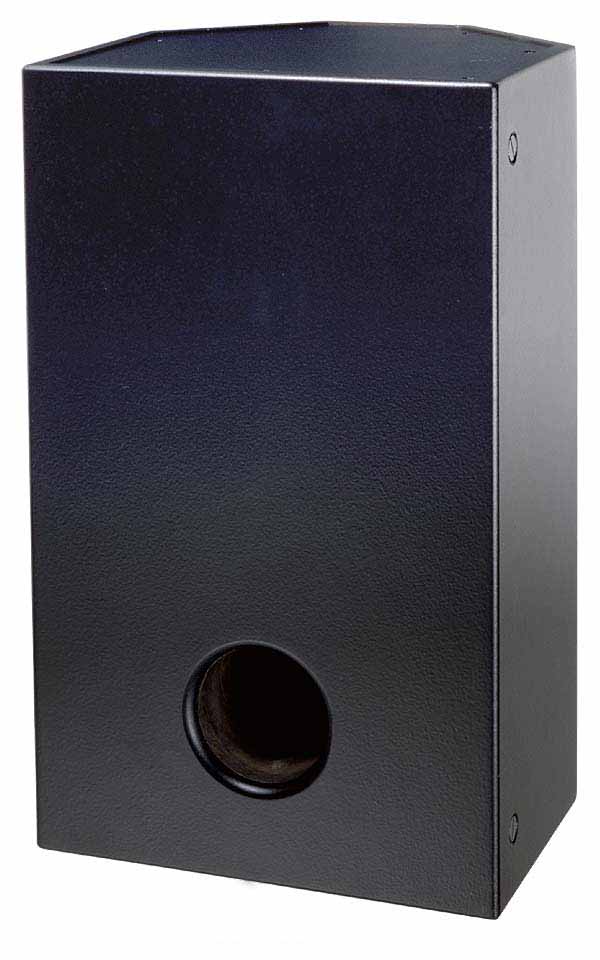

Acoustic Super Woofer |
| Power Handling Capacity |
450 W (Continuous program, 40 - 200 Hz)
150 W (Continuous pink noise, 40 - 200 Hz) |
| Rated Impedance |
8 Ω |
| Sound Pressure Level |
88 dB (1 W, 1 m) installation in free sound field
(Measured in anechoic chamber.)
94 dB (1 W, 1 m) installation in 1/2 free sound field
(Measured by installing the unit in the center of
a ceiling or wall.) |
| Frequency Response |
35 - 160 Hz (-10 dB) installation in 1/2 free sound field
(Measured by installing the unit in the center of
a ceiling or wall.) |
| Speaker Component |
25 cm cone speaker |
| Input Terminal |
Detachable screw terminal, (+)/(-) 2 each (for bridging connection) |
| Usable Cable |
Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No.24 - 14) |
| Finish |
MDF, black, paint |
| Dimensions |
354 (W) × 582 (H) × 340 (D) mm |
| Weight |
16 kg |
| Option |
Matching transformer: MT-S0601 (rated 60 W) |
