TOA FS-7000CP CONTROL PANEL
FS-7000CP Control Panel
FS-7000CP

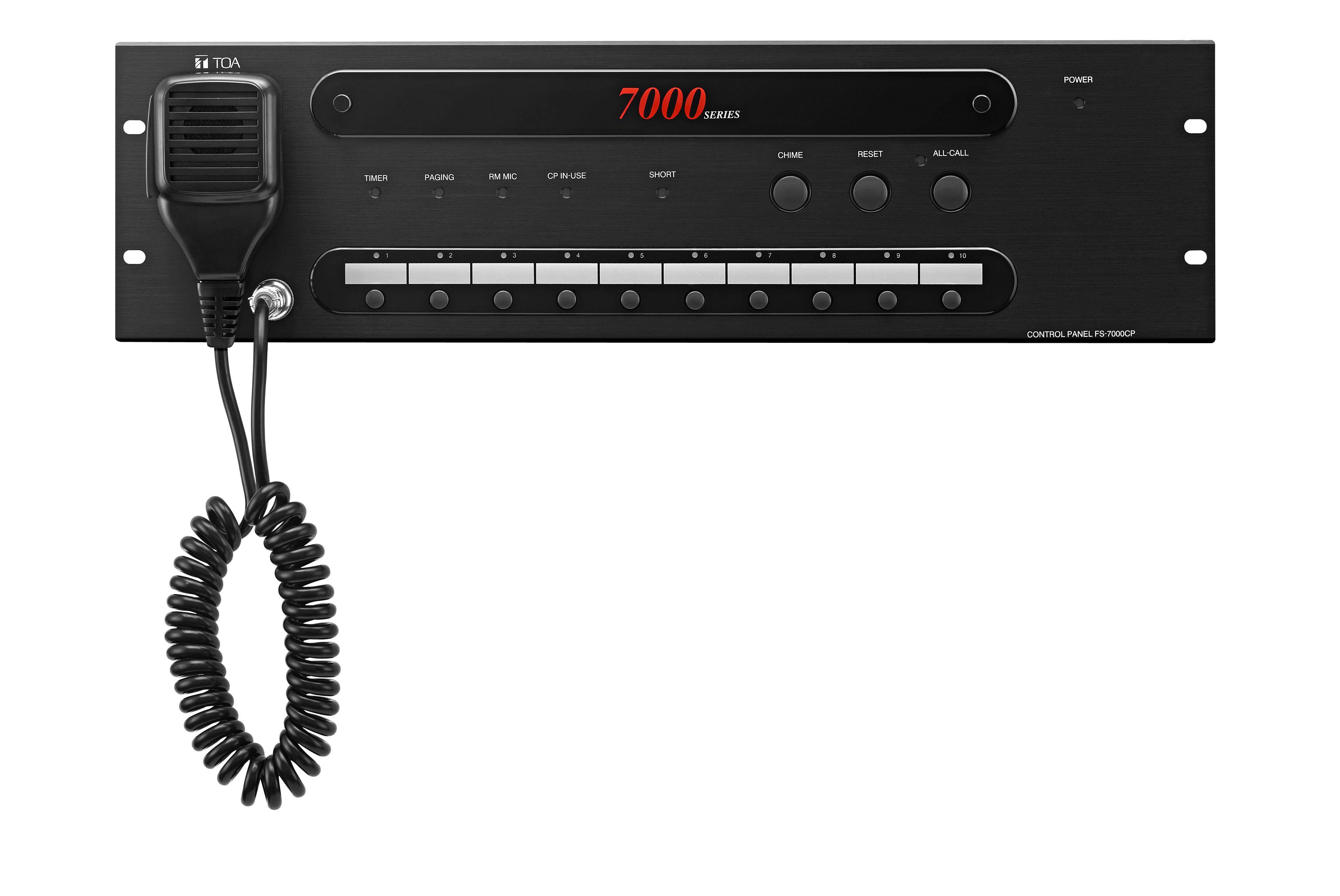

The FS-7000CP Control Panel is the basic operation section for the FS-7000 Series Voice Evacuation System. It is designed to be used in conjunction with the FS-7000JP Junction Panel and can control up to 10 speaker zones and a simultaneous all-zone call.
- * 0 dB = 1 V
| Power Source |
24 V DC, M3 screw terminal, distance between barriers: 6.4 mm |
| Current Consumption |
200 mA |
| Input |
EV: 0 dB*, 600 Ω, unbalanced, removable terminal block (2 pins)
Timer: 0 dB*, 600 Ω, unbalanced, removable terminal block (4 pins)
Paging: -60/-20 dB*, 600 Ω, balanced, removable terminal block (5 pins)
RF (Remote microphone): 0 dB*, 600 Ω, balanced,
removable terminal block (3 pins)
Preinstalled microphone (accessory): -55 dB*, 600 Ω, unbalanced,
circular connector (4 pins)
AUX: -20 dB*, 600 Ω, unbalanced, removable terminal block (2 pins)
BGM 1: -60/0 dB*, 600 Ω, balanced, removable terminal block (3 pins)
BGM 2 - 4: -20 dB*, 10 kΩ, unbalanced, RCA jack |
| Output |
Priority output: 0 dB*, 600 Ω, balanced, removable terminal block (3 pins)
(Outputs signals other than BGM 1 - 4 input signals when output
is set to 2-channel broadcast mode.)
BGM output: 0 dB*, 600 Ω, balanced, removable terminal block (3 pins)
(Outputs BGM 1 - 4 signals.) |
| Frequency Response |
50 - 15,000 Hz, within ±3 dB (1 kHz) |
| Tone Control |
±10 dB at 100 Hz and 10 kHz |
| S/N Ratio |
Over 60 dB |
| Distortion |
Under 1% |
| Priority Function |
Priority output: Preinstalled microphone > EV (emergency broadcast mode)
Timer > Paging > Remote microphone >
Preinstalled microphone, AUX > BGM 1
BGM 2 - 4 (general-purpose broadcast mode)
BGM output: BGM 1 BGM 2 - 4 (by muting function setting) |
| Electronic Tone |
Ascending 4-tone chime |
| External Control Input |
Timer: No-voltage make contact input, open voltage: 26 V DC,
short-circuit current: Under 2 mA, removable terminal block (4 pins)
Paging: No-voltage make contact input, open voltage: 26 V DC,
short-circuit current: Under 2 mA, removable terminal block (5 pins)
Automatic fire alarm system (10 zones):
No-voltage make contact input, open voltage: 26 V DC,
short-circuit current: Under 5 mA, removable terminal block (12 pins) |
| Output Control |
10 individual zones + all-zone call or 10 group zones + all-zone call (when
optional FS-7000GM is connected)
(individual zones expandable to up to 200 zones using FS-7010CP) |
| Operating Section |
Zone selection key, All-zone call button (general-purpose/general urgency all-
zone call selectable), Broadcast reset button and Chime button |
| Display Section |
Power indicator, All-zone call indicator, Zone indicators, Busy indicator (timer,
paging, remote microphone and main system), Speaker line short-circuit indicator |
| Operating Temperature |
0℃ to +40℃ |
| Operating Humidity |
Under 90% RH (no condensation) |
| Finish |
Panel: Aluminum, black, alumite |
| Dimensions |
482 (W) × 132.6 (H) × 376.9 (D) mm |
| Weight |
5.2 kg |
| Accessory |
Microphone …1, Removable terminal plug (2 pins) …2,
Removable terminal plug (3 pins) …4, Removable terminal plug (4 pins) …1,
Removable terminal plug (5 pins) …1, Removable terminal plug (12 pins) …1 |
|
